Landscape Characteristics Related to Use of Artificial
Roosts by Northern Long-eared Bats in North-central West
Virginia
Jesse L. De La Cruz, Ryan L. Ward, and Eric S. Schroder
Northeastern Naturalist, Volume 25, Issue 3 (2018): 487–501
Full-text pdf (Accessible only to subscribers. To subscribe click here.)
Access Journal Content
Open access browsing of table of contents and abstract pages. Full text pdfs available for download for subscribers.
Current Issue: Vol. 30 (3)
Check out NENA's latest Monograph:
Monograph 22
Northeastern Naturalist Vol. 25, No. 3
J.L. De La Cruz, R.L. Ward, and E.S. Schroder
2018
487

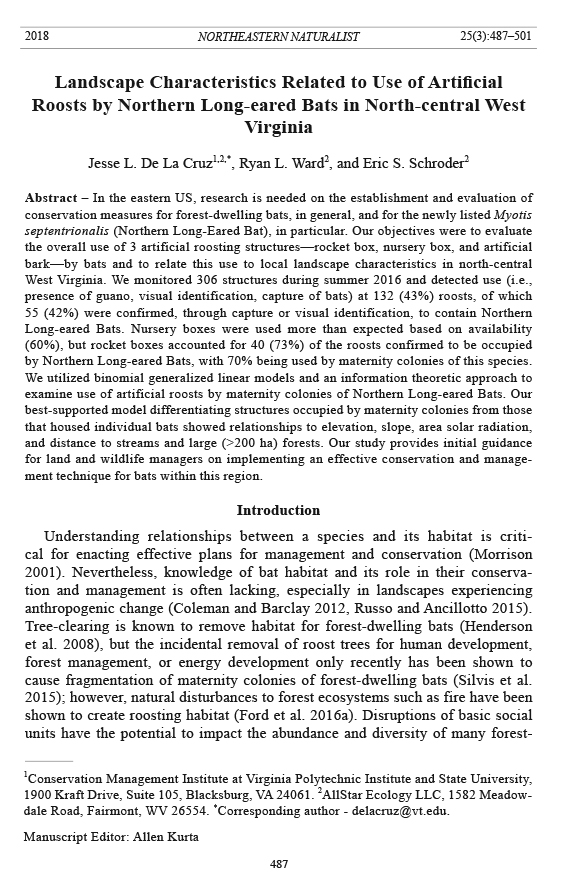

2018 NORTHEASTERN NATURALIST 25(3):487–501
Landscape Characteristics Related to Use of Artificial
Roosts by Northern Long-eared Bats in North-central West
Virginia
Jesse L. De La Cruz1,2,*, Ryan L. Ward2, and Eric S. Schroder2
Abstract – In the eastern US, research is needed on the establishment and evaluation of
conservation measures for forest-dwelling bats, in general, and for the newly listed Myotis
septentrionalis (Northern Long-Eared Bat), in particular. Our objectives were to evaluate
the overall use of 3 artificial roosting structures––rocket box, nursery box, and artificial
bark––by bats and to relate this use to local landscape characteristics in north-central
West Virginia. We monitored 306 structures during summer 2016 and detected use (i.e.,
presence of guano, visual identification, capture of bats) at 132 (43%) roosts, of which
55 (42%) were confirmed, through capture or visual identification, to contain Northern
Long-eared Bats. Nursery boxes were used more than expected based on availability
(60%), but rocket boxes accounted for 40 (73%) of the roosts confirmed to be occupied
by Northern Long-eared Bats, with 70% being used by maternity colonies of this species.
We utilized binomial generalized linear models and an information theoretic approach to
examine use of artificial roosts by maternity colonies of Northern Long-eared Bats. Our
best-supported model differentiating structures occupied by maternity colonies from those
that housed individual bats showed relationships to elevation, slope, area solar radiation,
and distance to streams and large (>200 ha) forests. Our study provides initial guidance
for land and wildlife managers on implementing an effective conservation and management
technique for bats within this region.
Introduction
Understanding relationships between a species and its habitat is critical
for enacting effective plans for management and conservation (Morrison
2001). Nevertheless, knowledge of bat habitat and its role in their conservation
and management is often lacking, especially in landscapes experiencing
anthropogenic change (Coleman and Barclay 2012, Russo and Ancillotto 2015).
Tree-clearing is known to remove habitat for forest-dwelling bats (Henderson
et al. 2008), but the incidental removal of roost trees for human development,
forest management, or energy development only recently has been shown to
cause fragmentation of maternity colonies of forest-dwelling bats (Silvis et al.
2015); however, natural disturbances to forest ecosystems such as fire have been
shown to create roosting habitat (Ford et al. 2016a). Disruptions of basic social
units have the potential to impact the abundance and diversity of many forest-
1Conservation Management Institute at Virginia Polytechnic Institute and State University,
1900 Kraft Drive, Suite 105, Blacksburg, VA 24061. 2AllStar Ecology LLC, 1582 Meadowdale
Road, Fairmont, WV 26554. *Corresponding author - delacruz@vt.edu.
Manuscript Editor: Allen Kurta
Northeastern Naturalist
488
J.L. De La Cruz, R.L. Ward, and E.S. Schroder
2018 Vol. 25, No. 3
dependent bats (Hayes and Loeb 2007), including threatened and endangered
species of high conservation concern.
Recent population declines of Myotis septentrionalis (Trouessart) (Northern
Long-eared Bat) due to White Nose Syndrome (WNS) caused by the fungal pathogen
Pseudogymnoascus destructans (Gargas, Trest, Christensen, Volk, and Blehert)
have been extreme. As a result of this decline, the species was recently listed as
threatened in the US (US Fish and Wildlife Service 2015) and endangered in Canada
(Committee on the Status of Endangered Wildlife in Canada 2013). Northern
Long-eared Bats generally appear dependent on contiguous, mature forest for both
roosting and foraging (Silvis et al. 2016, USFWS 2015). In the central Appalachian
Mountains and Ohio River Valley, both maternity colonies and solitary males rely
on cavities in declining trees or snags for roosts (Johnson et al. 2009, Silvis et al.
2012). Some currently common practices in forest management, however, may not
promote the roosting conditions required by this species, and it is unknown how
long-term changes in habitat structure and forest composition may affect the distribution
of the species (Owen et al. 2004; Silvis et al. 2012, 2016).
Artificial-roost construction is a potential conservation tool for many species of
bats, although fewer than 10 publications have examined the role of imitation roosts
in the conservation of North American species (Rueegger 2016). Little is known
about the use of artificial structures by Northern Long-eared Bats, and available
information is mostly anecdotal (Adams et al. 2015, Damm et al. 2015, Ritzi et al.
2005, Whitaker et al. 2006). In this study, we explored the use of more than 300
artificial roosts by Northern Long-eared Bats in north-central West Virginia during
2016. These roosts were installed as part of Habitat Conservation Plans (HCPs;
USFWS 2016) that were implemented in coordination with the West Virginia Field
Office of the USFWS (USFWS WV) as mitigating measures for potential impacts
to endangered and threatened bats from forest-clearing activities. Our goals were
to evaluate use of 3 types of artificial roosts and examine habitat characteristics associated
with roosts used by Northern Long-eared Bats.
Field-site Description
We examined artificial roosts that were distributed across 98,900 ha of
Doddridge, Tyler, and Ritchie counties, WV (Fig. 1), in the Western Hill subphysiographic
province of the Appalachian Region (Stausbaugh and Core 1978). The
Western Hill Section, adjacent to the Ohio River, is primarily composed of central
hardwood forest (xeric), cove hardwoods (mesic), and floodplain communities
(hydric) (Braun 1950). Topography of this region is characterized by moderate-tostrong
relief (150–450 m elevation), with the northern counties, including those of
the study area, being less rugged than their southern counterparts (Strausbaugh and
Core 1978, Topalanchik 1989). The study area is ~75% forested, experiences an
average daily temperature of 22 °C from June through August, and receives 14–16.5
cm of precipitation during mid-summer (Topalanchik 1989). The region consists of
a mix of corporate and non-industrial private forests, many of which are routinely
subjected to harvest (Birch 1994, Joshi and Arano 2009). Over the past decade, the
Northeastern Naturalist Vol. 25, No. 3
J.L. De La Cruz, R.L. Ward, and E.S. Schroder
2018
489
region has been a central area in the exploration and development of the Marcellus
tight-shale gas reservoir (Hein 2012).
Methods
Occurrence of bats
Artificial roosting structures. As part of the HCPs, artificial roosts (n = 306)
were installed from November 2015 to April 2016. Three artificial roosting types
were used: rocket boxes (n = 203), nursery boxes (n = 53), and artificial bark (n =
50) (Fig. 2). The number and type of artificial roosts were determined by project
proponents and USFWS WV. Rocket boxes were tall, rectangular structures, with
external dimensions of 1.2 m high x 0.3 m wide x 0.3 m deep and an internal
volume (V) of 0.03 m3, excluding the post and slats. Rocket boxes possessed 2 vertical
chambers in each of the 4 faces, offering 8 roosting chambers that mimicked
tree cavities and provided a large volume of roosting space and thermal gradients
(Burke 1999). Compared to rocket boxes, nursery boxes were smaller in both height
and depth (0.8 m high x 0.4 m wide x 0.1 m deep; V = 0.01 m3) and contained only
4 chambers, from front to back. However, the forward surface area of nursery boxes
nearly equaled that of any 1 side of a rocket box, thus providing a larger proportional
facade for solar heating with proper orientation, and the 4 successive chambers
offered different thermal regimes (Kiser and Kiser 2004). Artificial bark is a rubberized
substance that mimics the exfoliating bark of large snags (Gumbert et al.
Figure 1. Approximate locations of artificial roosts in Doddridge, Ritchie, and Tyler counties,
WV, 2016.
Northeastern Naturalist
490
J.L. De La Cruz, R.L. Ward, and E.S. Schroder
2018 Vol. 25, No. 3
2013). These roosts were built by attaching the artificial bark, lined with plastic
netting to provide a textured climbing surface, to vertical wooden struts fastened at
equal intervals around an unprocessed, cylindrical log (1 m high x 0.25 m diameter
x 0.02 m deep; V = 0.02 m3). Each type of structure was attached to and mounted
Figure 2. (A) rocket box with guano trap and emergence capture set-up, (B) artificial bark,
and (C) nursery box in north-central WV, 2016.
Northeastern Naturalist Vol. 25, No. 3
J.L. De La Cruz, R.L. Ward, and E.S. Schroder
2018
491
upright on a rectangular wooden post (10 cm x 10 cm for rocket and nursery boxes,
and 15 cm x 15 cm for artificial bark) so that the entrance for each roost was 4 m
above the ground (Fig. 2).
Passive monitoring. We conducted passive monitoring at artificial roosts by visual
examination of guano traps attached to each post (Gumbert et al. 2013). These
traps (38 cm x 38 cm) were constructed of rigid 7-mm–gauge wire mesh, lined with
fine window-screen and attached to the post about 1.5 m from the ground (Fig. 2A).
Exposed edges of wire were coated with silicone (Dip Seal Plastics, Inc., Rockford,
IL) to increase longevity of the trap and ensure no injury to bats. Traps were placed
in early June 2016 and left through late August 2016. Roosts were actively (manually)
monitored only 1–2 times per season; thus, guano traps provided a longer
sampling period of 2.5 months, during which we inferred use by presence of guano.
Precipitation causes the guano to disintegrate over time; consequently, our occupancy
estimates may be overly conservative, because roosts used only sparingly or
by few bats may have been undercounted.
Active monitoring and capture. We actively monitored artificial roosts over 1–2
visits from 1 June to 15 August 2016. We visually examined all structures diurnally
using a thermal camera (Compact, Seek Thermal, Inc., Santa Barbra, CA) and a
small, red-filtered light (McNamara, Rochester, NY). Our use of the thermal camera
allowed a noninvasive examination of the structure, whereas the red-filtered
light allowed a direct visual examination that minimized disturbance to bats but
ensured that single bats, which emit a small thermal signature, were not missed during
monitoring. To provide a more complete census and to prioritize capture efforts,
we identified observed bats to species using non-handling identification methods
(Christenson 2011).
We only attempted bat captures at some roosts, with preference given in this
order: roosts occupied by multiple bats, bats identified as likely Northern Longeared
Bats, and bats identified as likely Eptesicus fuscus Palisot de Beauvois (Big
Brown Bat). We captured bats during emergence using mist nets (2.6 m high x 6 m
wide with a 38-mm mesh; Avinet, Inc., Portland, ME) that encircled the roosts via
a 4-pole system that enabled nets to be raised evenly to a height of about 3.5 m
(Fig. 2A). We recorded data on species, site, sex, reproductive condition, and age
for each captured bat. We defined maternity colonies of captured bats as a group of
bats consisting of >1 pregnant or lactating adult or any assemblage of reproductive
females that also included juvenile bats. If capture was impossible, we described
roost occupancy based on visual identification to species, timing as related to bat
reproduction (e.g., colony formation, parturition), and a qualitative assessment of
group size (i.e., few or many bats visible, small or large amount of guano present).
We differentiated captured adult and juvenile bats by the degree of ossification of
the epiphyseal cartilage in the transilluminated metacarpal-phalangeal joints (Kunz
and Anthony 1982). We banded (2.9 mm; Porzana Limited, East Sussex, UK) all
adult Northern Long-eared Bats to allow individual identificatio n.
Habitat
To assess the surrounding habitat, we recorded distance to streams and forest
fragments and measures of aspect, elevation, slope, and solar radiation for each
Northeastern Naturalist
492
J.L. De La Cruz, R.L. Ward, and E.S. Schroder
2018 Vol. 25, No. 3
artificial structure. We defined distance to streams as the Euclidean distance from
each artificial roost to the nearest stream in the National Hydrography Dataset
(1:100000 scale; US Geological Survey 2002) as measured with the Joins and
Relates tools of ArcGIS (version 10.2.1; ESRI, Inc., Redlands, CA). Similarly, we
measured distance from each artificial roost to surrounding forest fragments using
ArcGIS. We derived elevation from digital elevation-models (3-m resolution; US
Geological Survey and West Virginia State Addressing and Mapping Board 2003)
and also used the Spatial Analyst extension of ArcGIS to determine slope, aspect,
and area solar radiation (ASR) from those models. The ASR, in units of watt hours
per square meter (W-h/m2), accounts for local atmospheric effects, latitude and
elevation, slope and aspect, seasonal angle of the sun, and shadows of surrounding
topography (Tovar-Pescador et al. 2006).
We used the Image Classification extension within Spatial Analyst to extract
basic land-cover classes from aerial imagery provided by the 2016 National Agriculture
Imagery Program (NAIP; US Department of Agriculture 2016). We utilized
a supervised, maximum-likelihood classification to create 3 basic cover-classes:
forest, open non-forested, and developed (Dewan and Yamaguchi 2009). We used
the Raster Calculator in ArcGIS with existing data to add 4 other classes: open water,
emergent wetlands, woody wetlands, and census roads (Strager 2012). Based on
these combined data, we examined forest fragmentation (i.e., forest or non-forest)
using the Landscape Fragmentation Tool of ArcGIS (Vogt et al. 2007) and classified
forest fragmentation into 4 primary categories: patch (forest fragments degraded by
edge effect), edge (forest periphery degraded by edge effect), perforated (interior
forest edge), and core forest (forest area not degraded by edge effect). We further
classified core forest as small (<100 ha), medium (100–200 ha), or large (>200 ha).
We used the Geospatial Modelling Environment to examine locations of artificial
roosts relative to landscape variables (Beyer 2010). We converted raster values
to point locations using the “isectpntrst” command, which enabled us to export data
as a viewable text file.
Statistical analysis
To compare landscape characteristics between roosts of maternity colonies and
individual Northern Long-eared Bats, we fit global, binomial, generalized linear
models that incorporated all variables, ranked by Akaike’s information criterion
(AIC), using a stepwise procedure on bootstrap samples (n = 1000) of the data.
Rather than compare a suite of intuitive models, this method investigates variability
of model selection via data simulation–model refit using simulated data and
the application of the stepAIC algorithm to the refitted model(s) to find the bestsupported
model (Dunn et al. 2010, Stepper et al. 2015). Artificial roosts were
counted as single locations and use was pooled across visits; thus, we assumed
independence of structures. To avoid problems of circularity when analyzing aspect,
we used sine and cosine transformations of the data (Odom et al. 2001). We
assessed significance of individual parameters within the best-supported model
by using Wald’s chi-square test, and overall fit of the model by using the logNortheastern
Naturalist Vol. 25, No. 3
J.L. De La Cruz, R.L. Ward, and E.S. Schroder
2018
493
likelihood–ratio test against a null model as well as the area under the receiver
operating characteristic curve (AUC). We employed a chi-square goodness-of-fit
test to determine if overall use of roosts and use by maternity colonies of Northern
Long-eared Bats were uniformly distributed by type of artificial structure. We
conducted all statistical analyses in program R (version 3.3.3; R Core Team 2015)
and based our approach upon methods and code described in McDonald (2014),
Mangiafico (2015), and package bootStepAIC (Dimitris Rizopoulos 2015). All
tests were performed using α ≤ 0.05 to determine significance.
Results
We detected use (i.e., presence of guano, visual identification, or capture of
bats) at 132 artificial roosts (43% of all available roosts) including 84 rocket
boxes (41% of rocket boxes), 32 nursery boxes (60% of nursery boxes), and 16
artificial-bark roosts (32% of artificial-bark roosts). Presence of guano was the
sole, non-species-specific indicator of use for 75 (57%) of the 132 roosts, visual
identification occurred at 28 (21%) occupied structures, and we captured bats
at 29 (22%) roosts. Compared to rocket boxes and artificial bark, nursery boxes
were used more than expected based on availability (χ2 = 9.2, df = 2, P = 0.01).
Overall, we identified only 2 bat species using artificial structures—we detected
Northern Long-eared Bats at 55 roosts and Big Brown Bats at 2 roosts. We verified
presence of Big Brown Bats through capture at structures (n = 2, 100%),
whereas we confirmed presence of Northern Long-eared Bats by both capture
(n = 27; 49%) and visual identification (n = 28; 51%). We caught 123 unique bats,
of which 119 (97%) were Northern Long-eared Bats and 4 (3%) were Big Brown
Bats; 78% of captured Northern Long-eared bats and all Big Brown Bats were
from rocket boxes (Table 1).
Of the 55 structures occupied by Northern Long-eared Bats, 45 (82%) roosts
contained only 1–2 individuals, with 18 (67%) of the 27 roosts at which this species
was caught containing only non-reproductive individuals (Table 1). We confirmed
via mist-netting that 9 structures housed maternity colonies of Northern Long-eared
Bats, which resulted in the capture of 101 bats (Table 1); one maternity colony was
inferred visually via species identification, a monitoring date (24 June 2016) that
coincided with the maternity period (Silvis et al. 2014), and qualitative assessment
of colony size. Rocket boxes accounted for 7 of 10 structures used by maternity
colonies and were the only structures to house—as individual roosts were monitored
sequentially and progressively throughout the summer—pregnant Northern
Long-eared Bats and then both non-volant and volant pups. However, maternity
colonies occupied no type of structure more than expected based on availability
(χ2 = 0.16, df = 2, P = 0.92).
Given the prevalence of Northern Long-eared Bats and their conservation
status, we restricted analysis of landscape variables to this species. Our best-supported
model differentiating landscape characteristics at the 10 roosts occupied by
maternity colonies from the 45 structures used by other Northern Long-eared Bats
Northeastern Naturalist
494
J.L. De La Cruz, R.L. Ward, and E.S. Schroder
2018 Vol. 25, No. 3
contained elevation, slope, ASR, streams, and large-core forest (Table 2). Under
this model, probability of maternity occupancy of an artificial roost increased with
rising slope, elevation, and increasing distance from streams and large forests but
decreased with increasing ASR. This model provided a better fit than the null model
(log-likelihood = -26.08, P = 0.01) and displayed moderate predictive power (AUC
= 0.84) (Table 2).
Table 1. Summary of use of 3 types of artificial roosts by bats, following passive and active monitoring
in Doddridge, Ritchie, and Tyler counties, WV, 2016.
Artificial roosts
Monitoring Artificial Nursery Rocket
technique Statistic bark box box Total
n 50 53 203 306
Passive monitoring Identified roosts 15 18 42 75
Visual observations Roosts used by Big Brown Bat maternity 0 0 0 0
colonies
Roosts used by individual(s) Big Brown Bats 0 0 0 0
Roosts used by Northern Long-eared Bat 1 0 0 1
maternity colonies
Roosts used by individual(s) Northern 0 7 20 27
Long-eared Bats
Active capture Roosts of captured Big Brown maternity 0 0 1 1
colonies
Roosts used by individual(s) Big Brown Bats 0 0 1 1
Roosts used by Northern Long-eared Bat 0 2 7 9
maternity colonies
Roosts used by individual(s) Northern 0 5 13 18
Long-eared Bats
Total roosts used 16 32 84 132
Number of captured Big Brown Bats 0 0 4 4
Number of captured Northern Long-eared Bats 0 26 93 119
Total bats captured 0 26 97 123
Table 2. Parameters and summary of best-supported model describing characteristics of roosts used
by maternity colonies roost (n = 10) of Northern Long-eared Bats in Doddridge, Ritchie, and Tyler
counties, WV, in 2016.
Variable DF Wald χ2 P > χ2
Elevation 1 4.34 0.04
Slope 1 3.60 0.06
ASR 1 4.25 0.04
Streams 1 4.46 0.03
Large core forest 1 4.04 0.04
Best-supported model Log-likelihood P > χ2 AUC
Elevation + slope + ASR + streams + large core -26.08 0.01 0.84
Northeastern Naturalist Vol. 25, No. 3
J.L. De La Cruz, R.L. Ward, and E.S. Schroder
2018
495
Discussion
Few data regarding use of artificial roosts as a conservation measure in North
America are available (Rueegger 2016), and use of such sites by individuals or maternity
colonies of Northern Long-eared Bats has rarely been documented (Burke
1999, Fagan et al. 2018, Silvis et al. 2016, Whitaker et al. 2004). Our results show
that overall use of artificial roosts by bats of any species was high (43%) and
occurred quickly (i.e., during the first maternity season following installation).
Approximately 18% of structures were occupied by Northern Long-eared Bats,
and at least 10 artificial roosts were occupied by maternity colonies of this species,
suggesting that placement of artificial structures is a potentially beneficial practice.
Rocket boxes accounted for most roosts that housed reproductive (pregnant and
lactating adults) and juvenile (volant and non-volant pups) Northern Long-eared
Bats. Nursery boxes were selected more than expected based on availability but
were typically used by few individuals.
Due to the morphological similarities of the genus Myotis, researchers must be
aware of the potential for species misclassification. Difficulties in accurate identification
may be further compounded when observing bats from a distance and in
poor lighting. However, visual identifications and counts have long been viable
methods for censusing bats (Hoying and Kunz 1998, Kunz 2003). We attempted
to mitigate for visual-misidentification bias by following available and applicable
keys (Christenson 2011), and relating unique visual identifiers (e.g., long ears,
pointed tragus) with those of captured bats. Furthermore, illuminating roosting
chambers with a bright light enabled visual identifiers to be seen more clearly;
use of a red-filtered light was only an attempt to reduce animal stress. Moreover,
understanding the reproductive biology of Northern Long-eared Bats, of colony
formation, parturition, and juvenile volancy (Silvis et al. 2014), enabled logical inferences
to be made regarding the visual classification of a single maternity colony.
Our visual identifications are also supported by the fact that 97% of bats identified
after capture at artificial roosts were Northern Long-eared Bats. Finally, based on
data from the West Virginia Division of Natural Resources (WVDNR), only 6 Myotis
lucifugus (Le Conte) (Little Brown Bat) and 4 Myotis sodalis (Miller and G.M.
Allen) (Indiana Bat) were captured statewide during summer 2016 (C.W. Stihler,
WVDNR, South Charleston, WV; pers. comm.). These statewide data suggest a low
abundance of species morphologically similar to the Northern Long-eared bat, and
further support our visual identifications of roosting bats.
Similar to previous research on natural roosts, our results showed that maternity
colonies of Northern Long-eared Bats were associated with upper elevations (Brack
et al. 2002; Johnson et al. 2009, 2012; Jung et al. 2004; Lacki and Schweirjohann
2001; Silvis et al. 2012). Silvis et al. (2012) postulated that these upper slopes, particularly
those associated with early-successional tree species (Lorimer and White
2003), were disturbed more frequently (e.g., by fire or windthrow) and to a higher
degree than other landforms, thus providing increased availability of natural roosts
for Northern Long-eared Bats (Ford et al. 2016a, b). In addition, our analysis found
that structures selected by maternity colonies were located farther from streams
Northeastern Naturalist
496
J.L. De La Cruz, R.L. Ward, and E.S. Schroder
2018 Vol. 25, No. 3
than were roosts used by individuals. This result is similar to previous research on
roosting (Johnson et al. 2009) and foraging (Ford et al. 2005) by Northern Longeared
Bats in West Virginia. State-wide recommendations from the West Virginia
Division of Forestry exclude riparian areas from logging operations (Kochenderfer
et al. 2005), which results in less disturbance in those portions of the forest. It may
be that artificial roosts used by Northern Long-eared Bats were placed in forested
areas that contained or previously contained roosting sites that resulted from natural
disturbances or anthropomorphic impacts, which are typically suppressed in riparian
areas.
Although high solar radiation is widely assumed to benefit maternity colonies
of temperate insectivorous bats, few studies have examined the effect of solar
radiation at the local-landscape level on the use of roosts (Ford et al. 2016a, b;
Johnson et al. 2009; Silvis et al. 2012, 2016). By measuring a leaf-area index,
Silvis et al. (2012) found that roosts of Northern Long-eared Bats were located in
dense, shaded forests, though in a geographic region with a higher summer temperature
than our study site. Measures of canopy closure have typically indicated
that regionally, Northern Long-eared Bats use suppressed and shaded trees that
receive little direct solar radiation (Johnson et al. 2012, Lacki and Schweirjohann
2001, Menzel et al. 2002, Silvis et al. 2012). Patriquin et al. (2017) reported that
roost switching by Northern Long-eared Bats was linked to ambient conditions
whereby solar exposure was more important in the northern or montane portions
of the species’ distribution than in the southern portion. Specifically, their
research suggested use of shorter, decayed trees on warm days and use of less decayed
roosts of smaller diameter on windy, rainy days. Our analysis showed that
use of artificial roosts decreased as ASR increased between maternity colonies
and individual Northern Long-eared Bats. Moreover, use of artificial structures by
maternity colonies did not appear affected by proximity to forest gaps, a feature
shown to improve the suitability of natural roosts of the Northern Long-eared Bat
(Johnson et al. 2009).
Northern Long-eared Bats have long been described as requiring large areas of
contiguous forest for both roosting and foraging (Broders et al. 2006, Carter and
Feldhamer 2005, Henderson and Broders 2008, Lacki and Schweirjohann 2001,
Perry and Thill 2007, Sasse and Pekins 1996). Similar to the findings of Owen et al.
(2003), our results somewhat depart from this generality and indicate that artificial
roosts were more likely to be used by colonies of Northern Long-eared Bats as distance
from areas of large (>200 ha) forests increased. It may be that artificial roosts
are selected less often when they are near large (>200 ha) forests due to a more diverse
selection and greater availability of natural roost-trees (Callahan et al. 1997).
Our analysis showed no relationship between distance to forest patch (i.e., forested
areas degraded by edge effect) and use of roosts by maternity colonies, suggesting
that there may be a threshold for intolerance of forest fragmentation by Northern
Long-eared Bats, though it was not detected in our results. Distance between
capture site (foraging area) and roosting location for Northern Long-eared Bats
averages 375 m (Johnson et al. 2009, Silvis et al. 2012), but the maximum distance
Northeastern Naturalist Vol. 25, No. 3
J.L. De La Cruz, R.L. Ward, and E.S. Schroder
2018
497
reported in the literature is 2.6 km (Badin 2014, Johnson et al. 2009). These results
show the need for the interspersion of heterogeneous roosting and flyway habitat,
and that isolated forest patches and large areas (>200 ha) of forest may lack roosts
or diverse foraging areas and movement corridors necessary as habitat for Northern
Long-eared Bats.
Our findings provide a regional assessment of artificial roosts a s a conservation
measure for bats and may aid in the identification of areas suitable for the installation
of artificial roosts in north-central West Virginia. Use of artificial roosts is
influenced by large-scale characteristics of the landscape, and placement of artificial
structures should therefore be dictated by consideration of these environmental and
physical features of the landscape. Our results indicate that managers, particularly
on the Appalachian Plateau, should install artificial roosts for maternity colonies
of Northern Long-eared Bats at upper elevations, of moderate-to-high slope, that
are exposed to moderate solar radiation, and not in close proximity to streams or
large forests (>200 ha). Furthermore, the high overall occupancy of nursery boxes
and use of rocket boxes by multiple maternity colonies indicate that both styles
should be placed in concert, to provide diverse roosting conditions for bats at all
life-stages and reproductive conditions. Future research should investigate various
assemblages of nursery and rocket boxes, with the aim of improving the potential
use of this conservation measure as a replacement for natural roosts.
Acknowledgments
We thank N.W. Lafleur, S.T. Kline, M.R. Evans, and E.M. Weisent for providing
technical field assistance; W.E. Veselka, T.J. Burhans, and V.C. Reaves for managerial
contributions; A.L. Runner and W.M. Ford for editorial contributions; and AllStar Ecology
LLC and Conservation Management Institute at Virginia Polytechnic and State University
for support of this project.
Literature Cited
Adams, J., P. Roby, P. Sewell, J. Schwierjohann, M. Gumbert, and M. Brandenburg. 2015.
Success of Brandenbark, an artificial-roost structure designed for use by Indiana Bats
(Myotis sodalis). Journal of the American Society for Mining and Reclamation 4:1–15.
Badin, H.A. 2014. Habitat selection and roosting ranges of Northern Long-eared Bats (Myotis
septentrionalis) in an experimental hardwood forest system. M.Sc. Thesis. Ball State
University, Muncie, IN. 90 pp.
Beyer, H. 2010. Geospatial modelling environment. Available online at http://www.
spatialecology.com/gme/. Accessed 8 February 2018.
Birch, T.W. 1994. Private forest-land owners of the United States, 1994. Resource Bulletin
NE-134:1–183. US Department of Agriculture, Forest Service, Northeastern Forest Experimental
Station, Newtown Square, PA.
Brack, V., Jr., C.W. Stihler, R.J. Reynolds, C.M. Butchkoski, and C.S. Hobson. 2002. Effect
of climate and elevation on distribution and abundance in the Mideastern United States.
Pp. 21–28, In A. Kurta and J. Kennedy (Eds.). The Indiana Bat: Biology and Management
of an Endangered Species. Bat Conservation International, Austin, TX. 253 pp.
Braun, E.L. 1950. Deciduous forests of eastern North America. Blakiston Company, Philadelphia,
PA. 596 pp.
Northeastern Naturalist
498
J.L. De La Cruz, R.L. Ward, and E.S. Schroder
2018 Vol. 25, No. 3
Broders, H.G., G.J. Forbes, S. Woodley, and I.D. Thompson. 2006. Range extent and stand
selection for roosting and foraging in forest-dwelling Northern Long-eared Bats and
Little Brown Bats in the Greater Fundy ecosystem, New Brunswick. Journal of Wildlife
Management 70:1174–1184.
Burke H.S., Jr. 1999. Maternity-colony formation in Myotis septentrionalis using artificial
roosts: The rocket box, a habitat enhancement for woodland bats? Bat Research News
40:77–78.
Callahan, E.V., R.D. Drobney, and R.L. Clawson. 1997. Selection of summer-roosting sites
by Indiana Bats (Myotis sodalis) in Missouri. Journal of Mammalogy 78:818–825.
Carter, T.C., and G.A. Feldhamer. 2005. Roost-tree use by maternity colonies of Indiana
Bats and Northern Long-eared Bats in southern Illinois. Forest Ecology and Management
219:259–268.
Christenson, K. 2011. Annotated key to the hibernating bats of the Northeast (using nonhandling
methods of identification). Pp. 18–19, In M.J. Baker, J. Kennedy, J. Tyburec,
and J. Chenger (Eds.). Bat Conservation and Management Workshop: Carter Cave State
Park, KY. Bat Conservation International, Austin, TX. 211 pp.
Coleman, J.L., and R.M.R. Barclay. 2012. Urbanization and the abundance and diversity of
prairie bats. Urban Ecosystems 87–102.
Committee on the Status of Endangered Wildlife in Canada. 2013. COSEWIC assessment
and status report on the Little Brown Myotis (Myotis lucifugus), Northern Myotis
(Myotis septentrionalis), Tri-colored Bat (Perimyotis subflavus) in Canada. Ottawa, ON,
Canada. 93 pp.
Damm, J.P., D.W. Sparks, and J.O. Whitaker Jr. 2015. Bat-species diversity at an urban–
rural interface: Dominance by one species in an urban area. Urban Naturalist 8:1–13.
Dewan, A.M., and Y. Yamaguchi. 2009. Using remote sensing and GIS to detect and
monitor land use and land-cover change in Dhaka Metropolitan of Bangladesh during
1960–2005. Environmental Monitoring and Assessment 150:237–249.
Dimitris Rizopoulos, A. 2015. Package “bootStepAIC”. Available online at https://cran.rproject.
org/web/packages/bootStepAIC/bootStepAIC.pdf. Accessed 8 February 2018.
Dunn, D.C., K. Stewart, R.H. Bjorkland, M. Haughton, S. Singh-Renton, R. Lewison, L.
Thorne, and P.N. Halpin. 2010. A regional analysis of coastal- and domestic-fishing effort
in the wider Caribbean. Fisheries Research 102:60–68.
Fagan, K.E., E.V. Willcox, L.T. Tran, R.F. Bernard, and W.H. Stiver. 2018. Roost selection
by bats in buildings, Great Smoky Mountains National Park. Journal of Wildlife Management
82:424–434.
Ford, W.M., M.A. Menzel, J.L. Rodrigue, J.M. Menzel, and J.B. Johnson. 2005. Relating
bat-species presence to simple habitat-measures in a central Appalachian forest. Biological
Conservation 126:528–539.
Ford, W.M., A. Silvis, J.B. Johnson, J.W. Edwards, and M.S. Karp. 2016a. Northern Longeared
Bat day-roosting and prescribed fire in the central Appalachians, USA. Fire Ecology
12:13–27.
Ford, W.M., A. Silvis, J.L. Rodrigue, A.B. Kniowski, and J.B. Johnson. 2016b. Deriving
habitat models for Northern Long-eared Bats (Myotis septentrionalis) from historical
detection data: A case study using the Fernow Experimental Forest. Journal of Fish and
Wildlife Management 7:86–98.
Gumbert, M., P. Sewell, J. Adams, P. Roby, J. Schwierjohann, and M. Brandenburg. 2013.
Brandenbark®: Artificial bark designed for roost use by Indiana Bats (Myotis sodalis).
Proceedings of the International Conference on Ecology and Transportation. Scottsdale,
AZ. Center for Transportation and the Environment, North Carolina State University,
Raleigh, NC.
Northeastern Naturalist Vol. 25, No. 3
J.L. De La Cruz, R.L. Ward, and E.S. Schroder
2018
499
Hayes, J.P., and S.C. Loeb. 2007. The influences of forest management on bats in North
America. Pp. 207–235, In M.J. Lacki, J.P. Hayes, and A. Kurta (Eds.). Bats in Forests:
Conservation and Management. Johns Hopkins University Press, Baltimore,
MD. 368 pp.
Hein, C.D. 2012. Potential impacts of shale-gas development on bat populations in the
northeastern United States. Delaware Riverkeeper Network, Bristol, PA. 33 pp. Available
online at https://goo.gl/3hygJz. Accessed 30 July 2018.
Henderson, L.E., and H.G. Broders. 2008. Movements and resource selection of the Northern
Long-eared Myotis (Myotis septentrionalis) in a forest-agriculture landscape. Journal
of Mammalogy 89:952–963.
Henderson, L.E., L.J. Farrow, and H.G. Broders. 2008. Intra-specific effects of forest loss
on the distribution of the forest-dependent Northern Long-eared Bat (Myotis septentrionalis).
Biological Conservation 141:1819–1828.
Hoying, K.M., and T.H. Kunz. 1998. Variation in size at birth and post-natal growth in the
insectivorous bat Pipistrellus subflavus (Chiroptera: Vespertilionidae). Journal of Zoology
245:15–27.
Johnson, J.B., J.W. Edwards, W.M. Ford, and J.E. Gates. 2009. Roost-tree selection by
Northern Myotis (Myotis septentrionalis) maternity colonies following prescribed fire
in a central Appalachian Mountains hardwood forest. Forest Ecology and Management
258:233–242.
Johnson, J.B., W.M. Ford, and J.W. Edwards. 2012. Roost networks of Northern Myotis
(Myotis septentrionalis) in a managed landscape. Forest Ecology and Management
266:223–231.
Joshi, S., and K.G. Arano. 2009. Determinants of private forest-management decisions: A
study on West Virginia NIPF landowners. Forest Policy and Economics 11:118–125.
Jung, T.S., I.D. Thompson, and R.D. Titman. 2004. Roost-site selection by forest-dwelling
male Myotis in central Ontario, Canada. Forest Ecology and Management 202:325–335.
Kiser, M., and S. Kiser. 2004. A decade of bat-house discovery. The Bat House Researcher
12:1–12.
Kochenderfer, J., A. Gale, J. Scronce, D. Dean, D. McGill, M. Facemyer, J. Newland, and
C.R. Dye. 2005. West Virginia silvicultural best management practices for controlling
soil erosion and sedimentation from logging operations. West Virginia Division of Forestry,
Charleston, WV. 31 pp.
Kunz, T.H. 2003. Censusing bats: Challenges, solutions, and sampling biases. Pp. 9–20, In
T.J. O’Shea and M.A. Bogan (Eds.). Monitoring Trends in Bat Populations of the United
States and Territories: Problems and Prospects. US Geological Survey, Springfield, VA.
274 pp.
Kunz, T.H., and E.L.P. Anthony. 1982. Age estimation and post-natal growth in the bat
Myotis lucifugus. Journal of Mammalogy 63:23–32.
Lacki, M.J., and J. Schweirjohann. 2001. Day-roost characteristics of Northern Bats in a
mixed mesophytic forest. Journal of Wildlife Management 65:482–488.
Lorimer, C.G., and A.S. White. 2003. Scale and frequency of natural disturbances in the
northeastern US: Implications for early-successional forest habitats and regional agedistributions.
Forest Ecology and Management 185:41–64.
Mangiafico, S.S. 2015. An R companion for the Handbook of Biological Statistics. 1.2.1.
Rutgers Cooperative Extension, New Brunswick, NJ. 278 pp.
McDonald, J.H. 2014. Handbook of Biological Statistics, 3rd Edition. Sparky House Publishing,
Baltimore, MD. 299 pp.
Northeastern Naturalist
500
J.L. De La Cruz, R.L. Ward, and E.S. Schroder
2018 Vol. 25, No. 3
Menzel, M.A., S.F. Owen, W.M. Ford, J.W. Edwards, P.B. Wood, B.R. Chapman, and K.V
Miller. 2002. Roost-tree selection by Northern Long-eared Bat (Myotis septentrionalis)
maternity colonies in an industrial forest of the central Appalachian Mountains. Forest
Ecology and Management 155:107–114.
Morrison, M.L. 2001. Introduction: Concepts of wildlife and wildlife habitat for ecological
restoration. Restoration Ecology 9:251–252.
Odom, R.H., W.M. Ford, J.W. Edwards, C.W. Stihler, and J.M. Menzel. 2001. Developing
a habitat model for the endangered Virginia Northern Flying Squirrel (Glaucomys
sabrinus fuscus) in the Allegheny Mountains of West Virginia. Biological Conservation
99:245–252.
Owen, S.F., M.A. Menzel, W.M. Ford, and B.R. Chapman. 2003. Home-range size and
habitat used by the Northern Myotis (Myotis septentrionalis). American Midland Naturalist
150:352–359.
Owen, S.F., M.A. Menzel, J.W. Edwards, W.M. Ford, J.M. Menzel, B.R. Chapman, P.B.
Wood, and K.V. Miller. 2004. Bat activity in harvested and intact forest stands in the
Allegheny Mountains. Northern Journal of Applied Forestry 21:154–159.
Patriquin, K.J., M.L. Leonard, H.G. Broders, W.M. Ford, E.R. Britzke, and A. Silvis. 2017.
Weather as a proximate explanation for fission–fusion dynamics in female Northern
Long-eared Bats. Animal Behaviour 123:355–357.
Perry, R.W., and R.E. Thill. 2007. Roost selection by male and female Northern Long-eared
Bats in a pine-dominated landscape. Forest Ecology and Management 247:220–226.
R Core Team. 2015. R: A Language and Environment for Statistical Computing. R Foundation
for Statistical Computing, Vienna, Austria. Available online at http://www.rproject.
org/. Accessed 8 February 2018.
Ritzi, C.M., B.L. Everson, and J.O. Whitaker Jr. 2005. Use of bat boxes by a maternity
colony of Indiana Myotis (Myotis sodalis). Northeastern Naturalist 12:217–220.
Rueegger, N. 2016. Bat boxes: A review of their use and application, past, present, and
future. Acta Chiropterologica 18:279–299.
Russo, D., and L. Ancillotto. 2015. Sensitivity of bats to urbanization: A review. Mammalian
Biology 80:205–212.
Sasse, D.B., and P.J. Pekins. 1996. Summer-roosting ecology of Northern Long-eared Bats
(Myotis septentrionalis) in the White Mountain National Forest. Pp. 91–101, In R.M.R.
Barclay and R.M. Bringham (Eds.). Bats and Forests Symposium, 19–21 October 1995.
Victoria, BC, Canada. 302 pp.
Silvis, A., W.M. Ford, E.R. Britzke, N.R. Beane, and J.B. Johnson. 2012. Forest succession
and maternity day-roost selection by Myotis septentrionalis in a mesophytic hardwood
forest. International Journal of Forestry Research 2012:1–8.
Silvis, A., W.M. Ford, E.R. Britzke, and J.B. Johnson. 2014. Association, roost use, and
simulated disruption of Myotis septentrionalis maternity colonies. Behavioural Processes
103:283–290.
Silvis, A., W.M. Ford, and E.R. Britzke. 2015. Effects of hierarchical roost removal on
Northern Long-eared Bat (Myotis septentrionalis) maternity colonies. PLoS ONE
10:1–17.
Silvis, A., R.W. Perry, and W.M. Ford. 2016. Relationships of three species of bats impacted
by white-nose syndrome to forest condition and management. General Technical Report
SRS-214. US Forest Service, Southern Research Station, Asheville, NC. 48 pp.
Stepper, C., C. Straub, and H. Pretzsch. 2015. Using semi-global matching-point clouds
to estimate growing stock at the plot and stand levels: Application for a broadleafdominated
forest in central Europe. Canadian Journal of Forest Research 123:111–123.
Northeastern Naturalist Vol. 25, No. 3
J.L. De La Cruz, R.L. Ward, and E.S. Schroder
2018
501
Strager, M. 2012. Landuse/landcover of West Virginia (2011). Natural Resource Analysis
Center. Available online at http://wvgis.wvu.edu/data/dataset.php?ID=451. Accessed 8
February 2018.
Strausbaugh, P., and E. Core. 1978. Flora of West Virginia. Seneca Books, Morgantown,
WV. 1079 pp.
Topalanchik, A.R. 1989. Soil survey of Pleasants and Tyler counties, West Virginia. US
Department of Agriculture, Soil Conservation Service. Washington, DC. 127 pp.
Tovar-Pescador, J., D. Pozo-Vazquez, J.A. Ruiz-Arias, J. Batlles, G. Lopez, and J.L. Bosch.
2006. On the use of the digital elevation model to estimate the solar radiation in areas of
complex topography. Meteorological Applications 13:279–287.
US Department of Agriculture. 2016. Aerial 1-m orthophotos (2016 NAIP): Natural color
and color infrared. Available online at http://wvgis.wvu.edu/data/dataset.php?ID=469.
Accessed 8 February 2018.
US Fish and Wildlife Service (USFWS). 2015. Endangered and threatened wildlife and
plants; threatened-species status for the Northern Long-eared Bat with 4(d) rule; final
rule and interim rule. Federal Register 80:17,974–18,033.
USFWS. 2016. Guidance on developing and implementing an Indiana Bat conservation
plan. Elkins, WV. 23 pp.
US Geological Survey (USGS). 2002. Streams: National hydrography dataset (100k).
Available online at http://wvgis.wvu.edu/data/dataset.php?ID=178. Accessed 8 February
2018.
USGS and West Virginia State Addressing and Mapping Board. 2003. Digital elevationmodels.
Available online at http://wvgis.wvu.edu/data/dataset.php?ID=261. Accessed 8
February 2018.
Vogt, P., K. Riitters, C. Estreguil, J. Kozak, T.G. Wade, and J.D. Wickham. 2007. Mapping
spatial patterns with morphological image processing. Landscape Ecology 22:171–177.
Whitaker, J.O., Jr., D.W. Sparks, and V. Brack Jr. 2004. Bats of the Indianapolis International
Airport area, 1991—2011. Proceedings of the Indiana Academy of Science
113:151–161.
Whitaker, J.O., Jr., D.W. Sparks, and V. Brack Jr. 2006. Use of artificial-roost structures by
bats at the Indianapolis International Airport. Environmental Management 38:28–36.
